Typical Road Cross Sections

yogendra borse

Ancient Roman times road cross section

Click on images below for clear view

Typical Cross section for 18 m wide road (Outside Builtup area)

Typical Cross section for 18 m wide road (Within Builtup area)

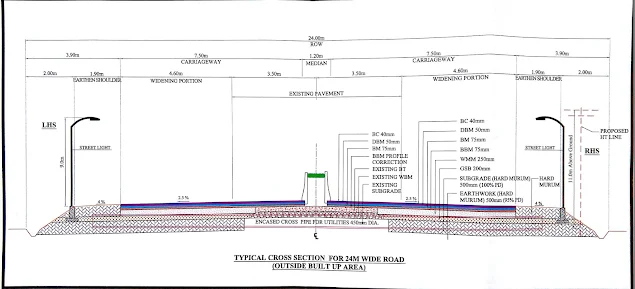

Typical Cross section for 24 m wide road (Outside Builtup area)

Typical Cross section for 24 m wide road (Within Builtup area)

Typical Cross section for 30 m wide road (Outside Builtup area)

Typical Cross section for 30 m wide road (Within Builtup area)

Typical Cross section for 36 m wide road (Outside Builtup area)

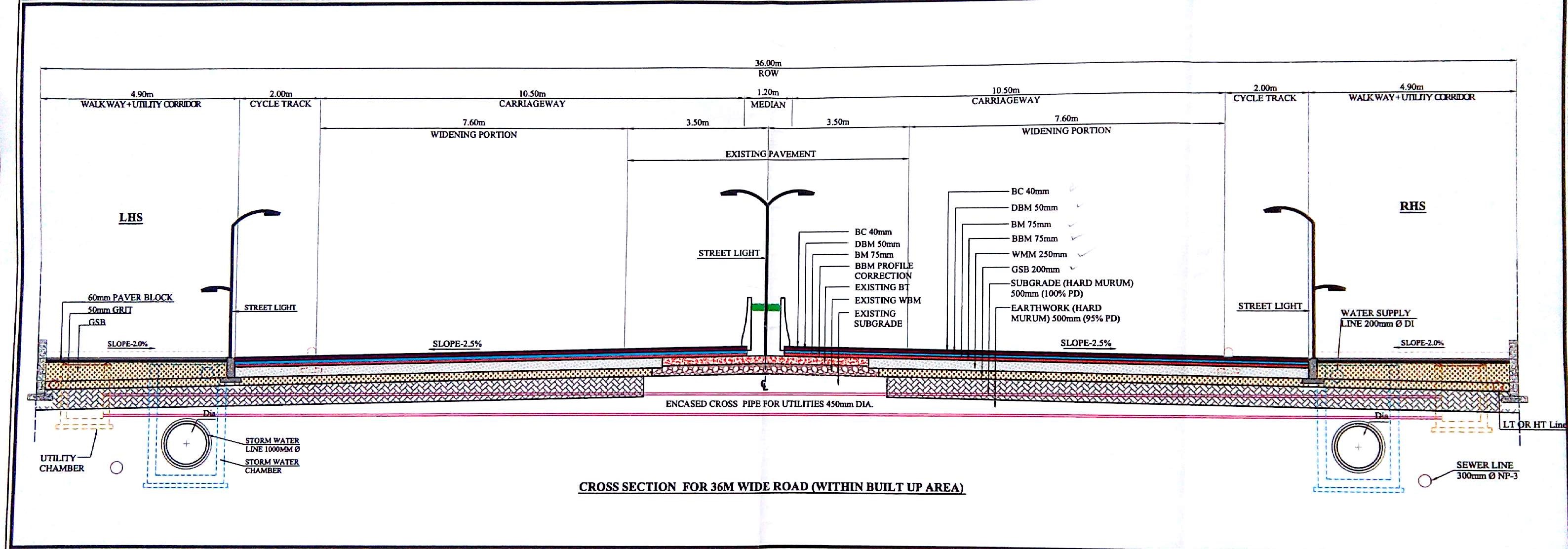

Typical Cross section for 36 m wide road (Within Builtup area)
